MobileAccess Distributed Antenna System (DAS)

Flexible & Scalable Digital Infrastructure for Indoor Coverage & Capacity

Overview

Reliable mobile coverage is essential to productivity, customer satisfaction, and operational success. Yet building materials often block outdoor signals, leaving costly gaps in connectivity. MobileAccess DAS solves this by delivering secure, high-capacity coverage throughout your facility with a purpose-built network - ensuring employees stay productive, customers stay connected, and your business is prepared for the demands of a mobile-first world.

Key Benefits

Enhanced User
Experience

Eliminates dropped calls and slow data speeds, ensuring uninterrupted communication and access to mobile applications.​

Scalable
Solutions

Tailored to fit diverse environments, from small enterprises to expansive venues like stadiums and airports.​

Supports Multiple Carriers & Technologies

Accommodates various mobile operators and is adaptable to evolving technologies, including 5Goverlay with SISO/MIMO configurations.

Reliable E911
Connectivity

Venue 4G & 5G coverage will allow people to call E911 during any emergency or crisis

MobileAccess 6000 Distributed Antenna System

MobileAccess 6000 G2 DAS is ideal for large venues such as stadiums and airports, this solution provides high-capacity coverage to support thousands of simultaneous users. It is a next-generation cellular platform that combines:

  • Ultra-fast connectivity and high-capacity with minimal head-end and access infrastructure
  • Low-, medium- and high- power remotes. Mix and match them to deliver the best service based on your specific needs.
  • Software features that improve installation speed, ensure system stability, and adapt to changing requirements.
  • Deployment options with fiber-to-the-edge and hybrid fiber-coax configurations

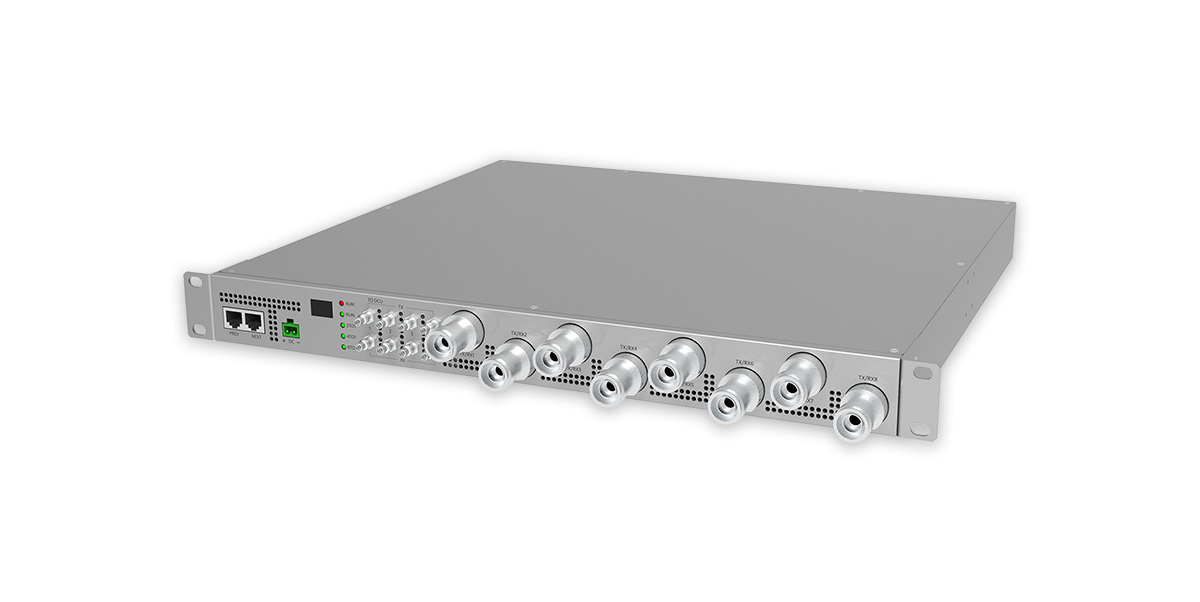

M6000-6
Radio Interface Unit (RIU)

The RIU provides an interface and signal conditioning to signals coupled between the base station RF antenna ports and the DCU. The RIU is band specific.

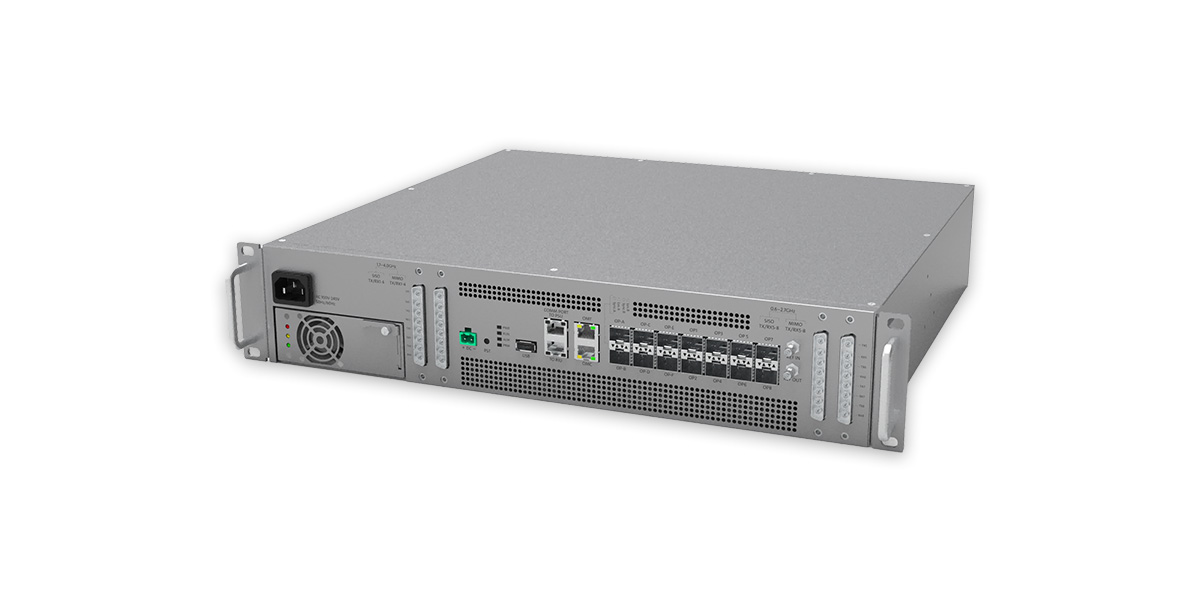

M6000-2
Digital Conversion Unit (DCU)

The DCU converts aggregated RF signals to CPRI for the downlink and CPRI to RF for the uplink, supporting both FDD and TDD bands (600 MHz to 4000 MHz).

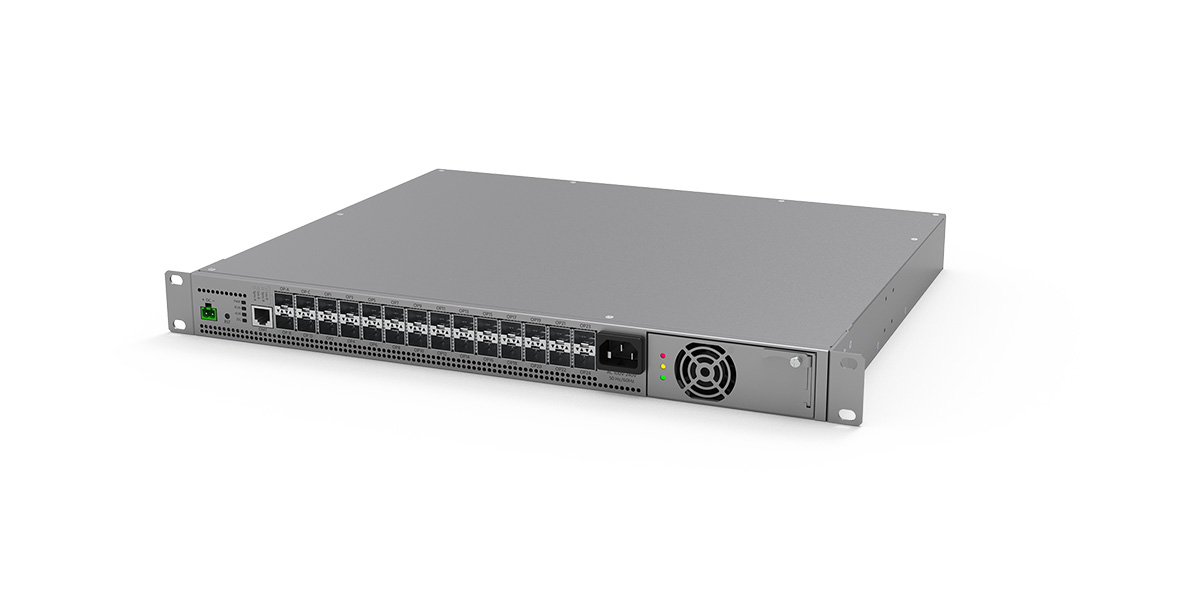

M6000-3
Distributed Extension Unit (DEU)

The DEU is the central hub and distribution element for the MobileAccess 6000 G2 Solution. The DEU interfaces between the DCU and the remote unit, allowing it to receive the operators’ service signals in CPRI format, and to route these signals to the remote antenna units.

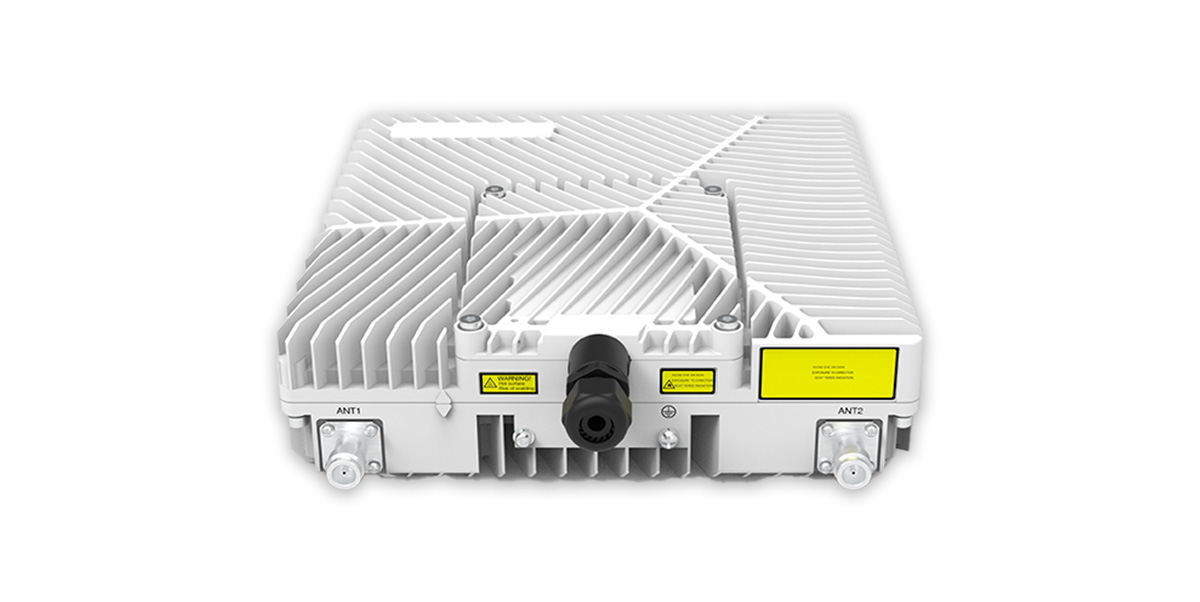

M6000-4
dLRU-G2 Digital Low-Power Remote

The dLRU is a low-power remote antenna unit with 20~27 dBm per MIMO stream per band output RF power and native support of 2x2 MIMO antenna scheme. It is ideal for multi-operator, multiband high capacity deployments across small-to-large building coverage areas. The dLRU cooling is natural convection with no fans. Due to its IP66 enclosure design the dLRU can also be installed outdoors.

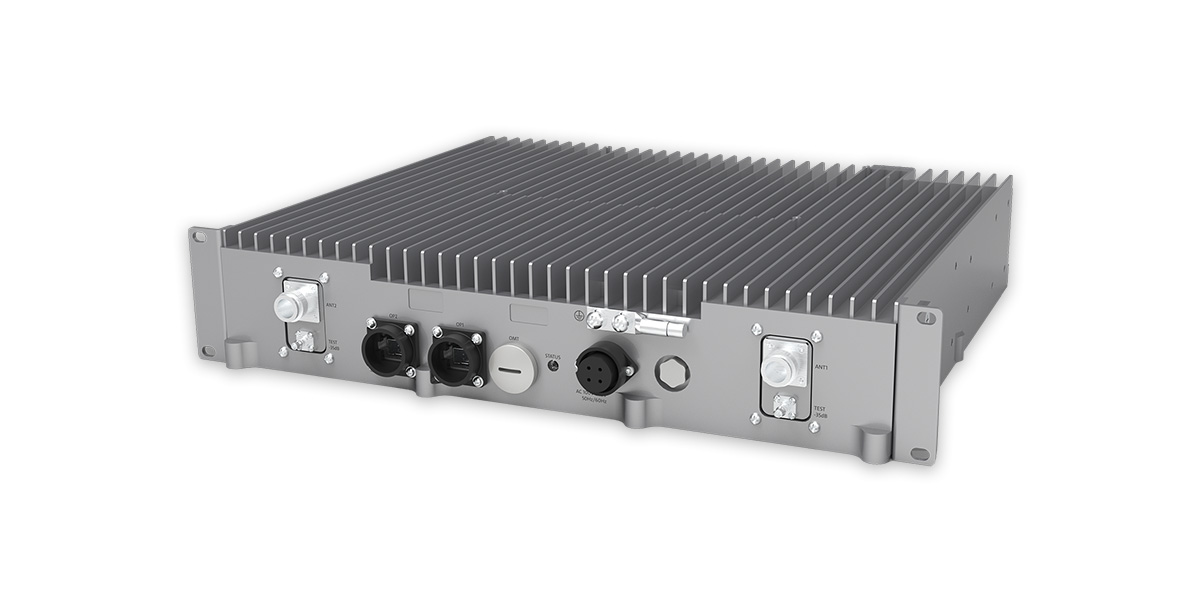

M6000-5
dMRU-G2 Digital Mid-Power Remote

The dMRU is a medium-power remote antenna unit with 36~40 dBm per MIMO stream per band output RF power and native support of 2x2 MIMO antenna scheme. It is ideal for multi-operator, multiband high capacity deployments across small-to-large building coverage areas. The dMRU cooling is based on natural convection with no fans. Due to its IP65 enclosure design, the dMRU can also be installed outdoors.

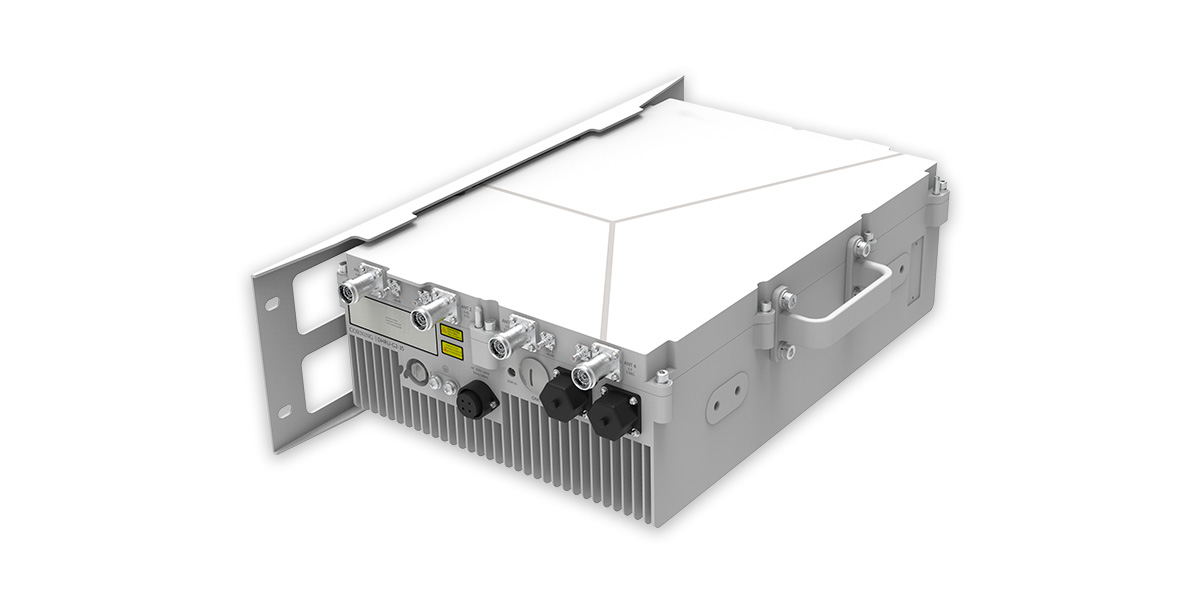

M6000-1
dHRU-G2 Digital High-Power Remote

The dHRU is a high-power modular remote antenna unit which provides 43~46 dBm output RF power per service module, and native support of 2x2 MIMO antenna scheme. It is ideal for multi-operator, multiband high capacity deployments across small-to-large building coverage areas. The dHRU cooling is based on natural convection with no fans. Due to its IP65 enclosure design, the dHRU can also be installed outdoors.

MobileAccess 6200 Distributed Antenna System

MobileAccess 6200 Family DAS is suited for medium-sized buildings like hospitals, hotels, and commercial properties, offering flexible and efficient coverage to enhance user experience.
MA 6200 DAS is a multioperator cellular Platform that combines:

  • Ultra-fast connectivity and high-capacity with minimal head-end and access infrastructure
  • Low-, medium-, and high-powered remotes. Mix and match them to deliver the best service based on your specific needs.
  • Software features that improve installation speed, ensure system stability, and adapt to changing requirements.
  • Deployment options with fiber-to-the-edge and hybrid fiber-coax configurations

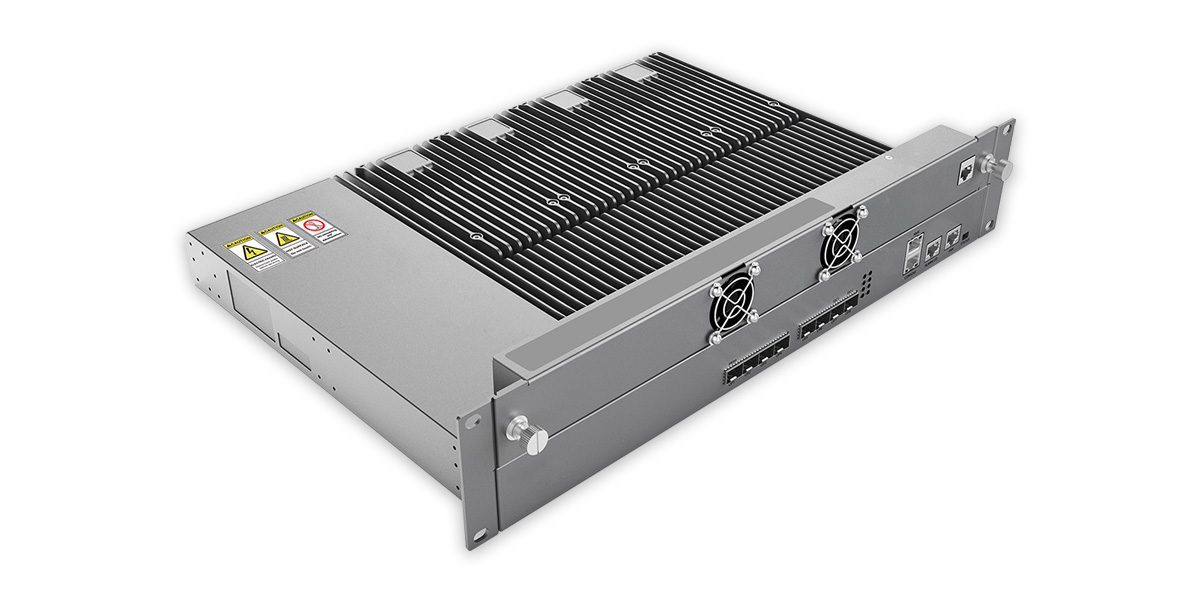

M6200-01

Access Unit Chassis

The Access Unit Chassis provides coupling access to radio signal sources of multi-operator, multi-system, and multi-band, forming digital optical signals and distributing static capacity distribution to fiber- connected slave devices.

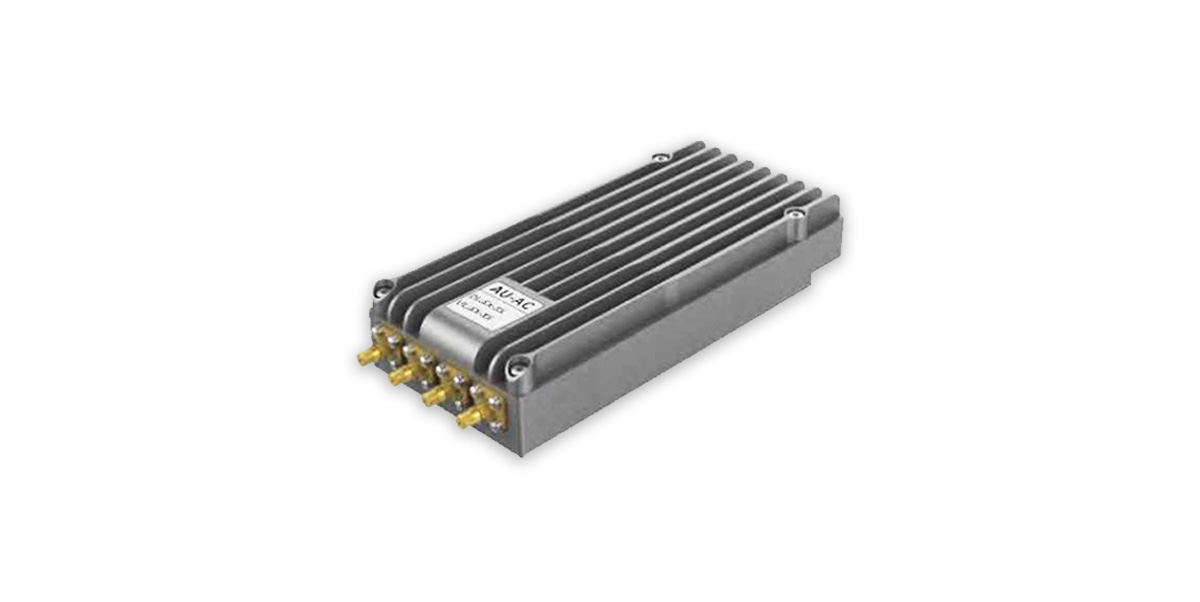

M6200-02

Active Combiner Module

The Active Combiner Module is the interface to the operator base station signal source equipment. The ACM is band specific.

M6200-03

Expansion Unit

The Expansion Unit serves as the interface between the Primary Access Unit and the Remote Unit for the capacity expansion of system.

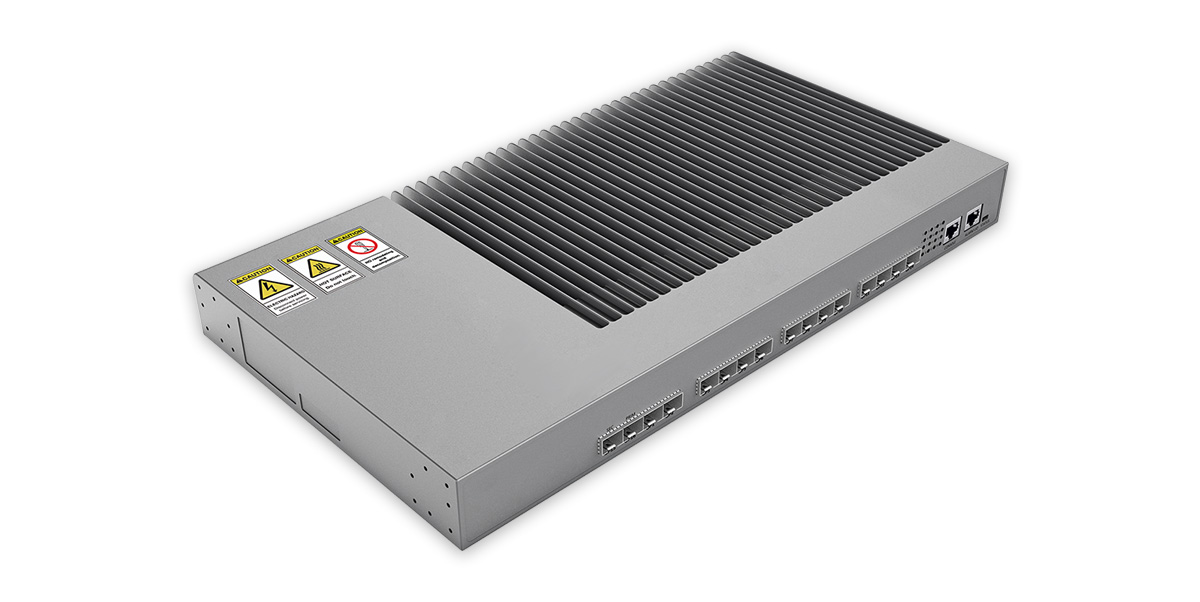

M6200-04

Expansion Unit Gateway

The Expansion Unit Gateway provides flexible support for 10G and 25G optical ports, enabling simultaneous connectivity to H2RU and N3/M3/X3RU interfaces.

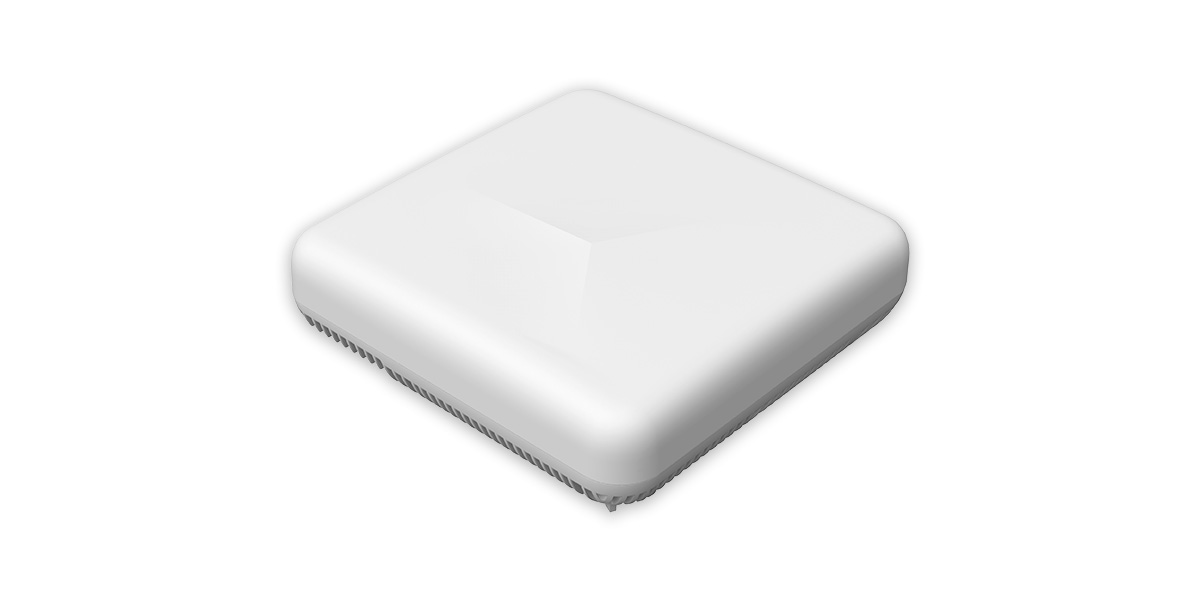

M6200-05

N2RU Low Power Remote

The N2RU is a low-power remote unit optimized for cellular connectivity over fiber optic cable using the CPRI protocol. It is ideal for multi-operator, multiband deployments across small-to-large building coverage areas. The N2RU supports low and mid-band configurations, as well as 2.5 TDD, with SISO or 2x2 MIMO antenna schemes.

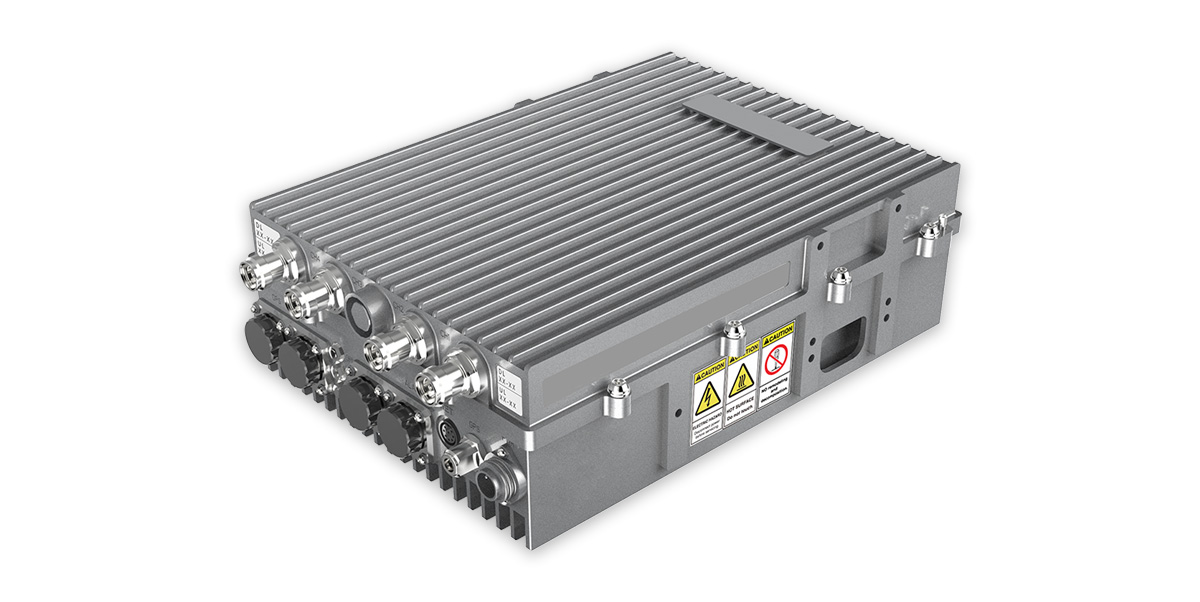

M6200-06

M2RU Medium Power Remote

The M2RU is a medium-power remote unit designed for cellular connectivity over fiber optic cable via the CPRI protocol. It is well-suited for multi-operator, multiband deployments in small-to-large building coverage areas. The M2RU supports a 2x2 MIMO antenna scheme for mid-bands and 2.5 TDD configurations.

M6200-07

H2RU High Power Remote

The H2RU is a high-power remote unit supporting cellular technologies on fiber optic cable using the CPRI protocol. It is well-suited for multi-operator, multiband deployments in small-to-large building coverage areas. The H2RU supports SISO antenna scheme for low and mid-bands configurations.

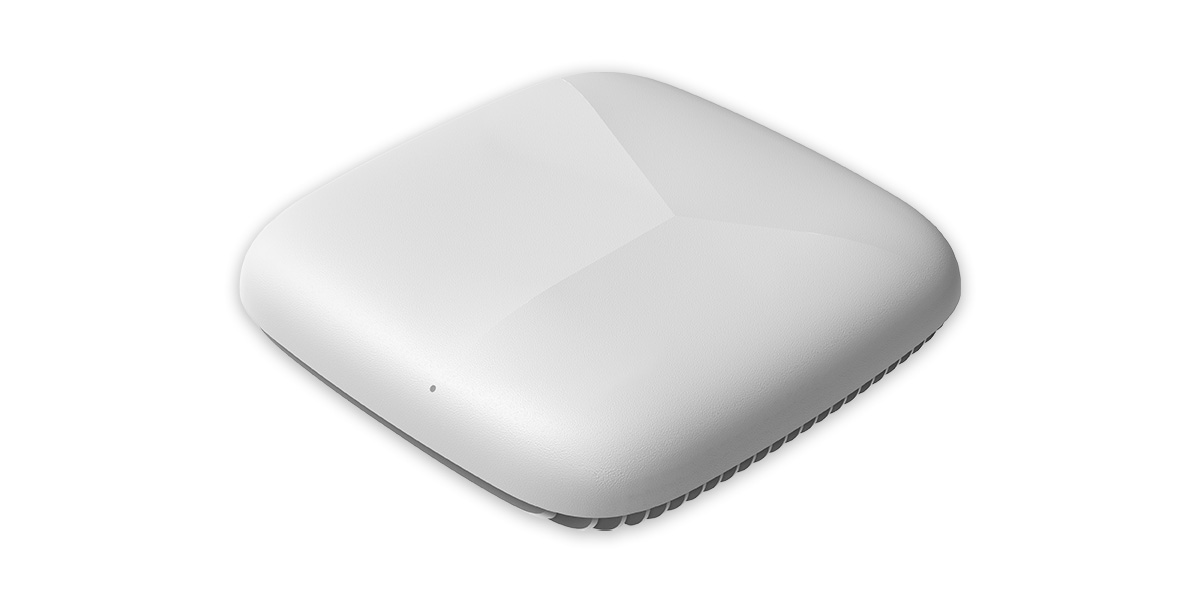

M6200-08

N3RU Low Power Remote

The N3RU is a low-power remote unit designed for cellular connectivity over fiber optic cable via the CPRI protocol. It is optimized for multi-operator, high-capacity multiband deployments in small-to-large building coverage areas. The N3RU supports low and mid-band configurations, along with 2.5, 3.5, and 3.7 GHz TDD bands, using SISO or 2x2 MIMO antenna schemes.

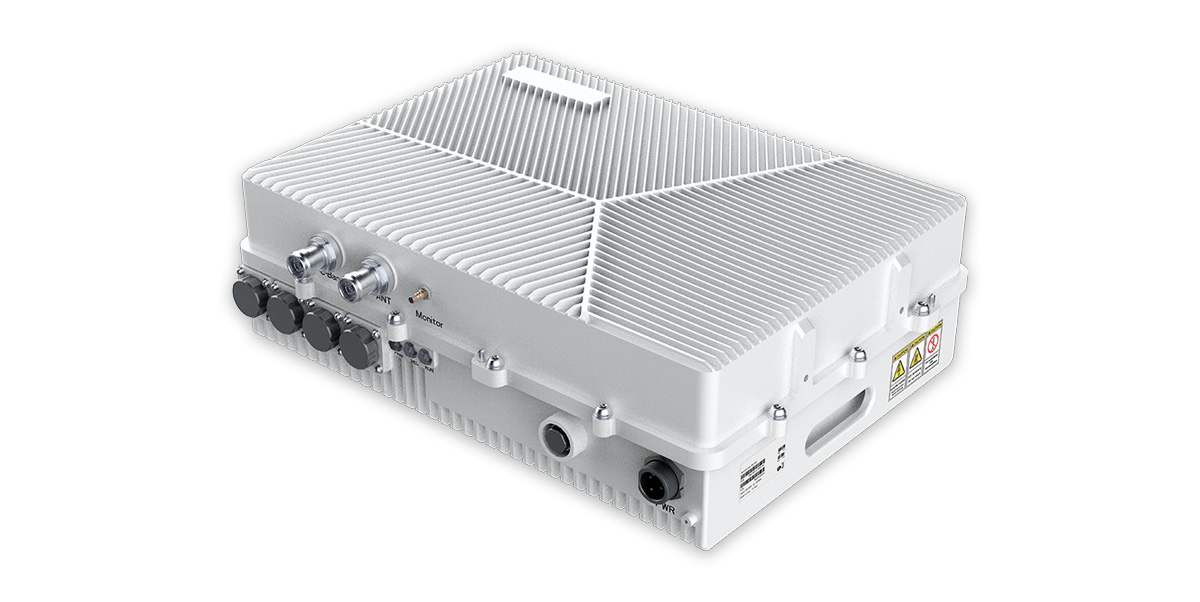

M6200-09

M3RU-L Medium Power Remote

The M3RU is a medium-power remote unit optimized for cellular connectivity over fiber optic cable using the CPRI protocol. It is ideal for multi-operator, multiband deployments across small-to-large building coverage areas. The M3RU supports a SISO antenna scheme for low and mid-band configurations, as well as 2.5 TDD.

M6200-10

M3RU-H-25 Medium Power Remote

The M3RU-H is a medium-power remote unit tailored for 2.5 GHz TDD, supporting SISO or 2x2 MIMO antenna schemes. It enables cellular connectivity over fiber optic cable using the CPRI protocol.

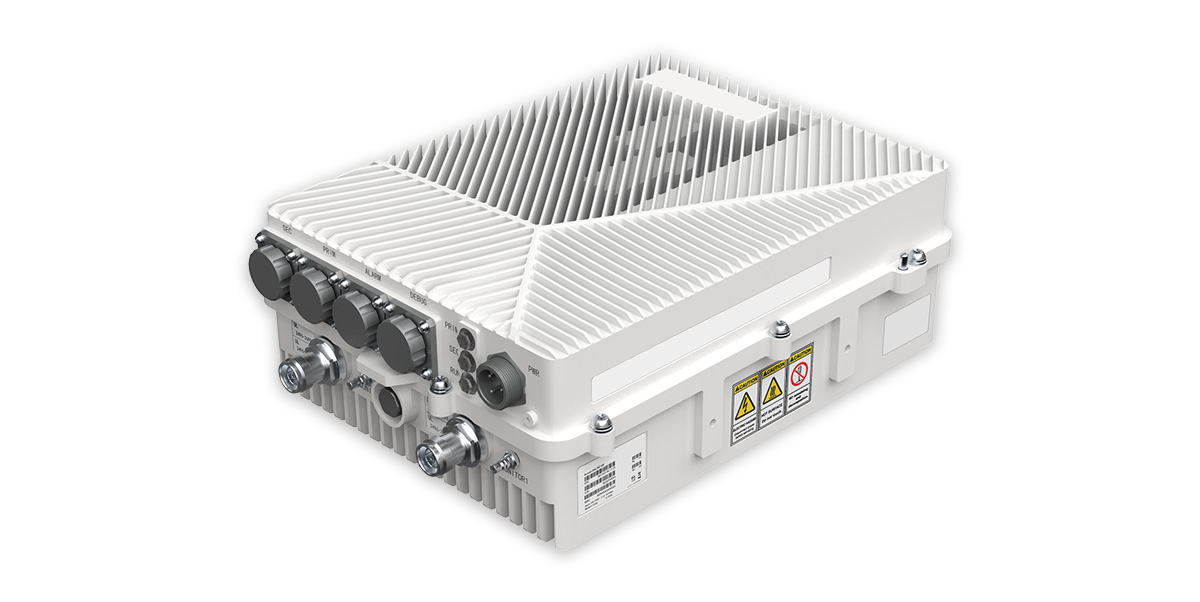

M6200-11

M3RU-H-3537 Medium Power Remote

The M3RU-H is a medium-power remote unit designed for 3.5 and 3.7 GHz C-Band TDD, supporting SISO antenna scheme. It facilitates cellular connectivity over fiber optic cable using the CPRI protocol.

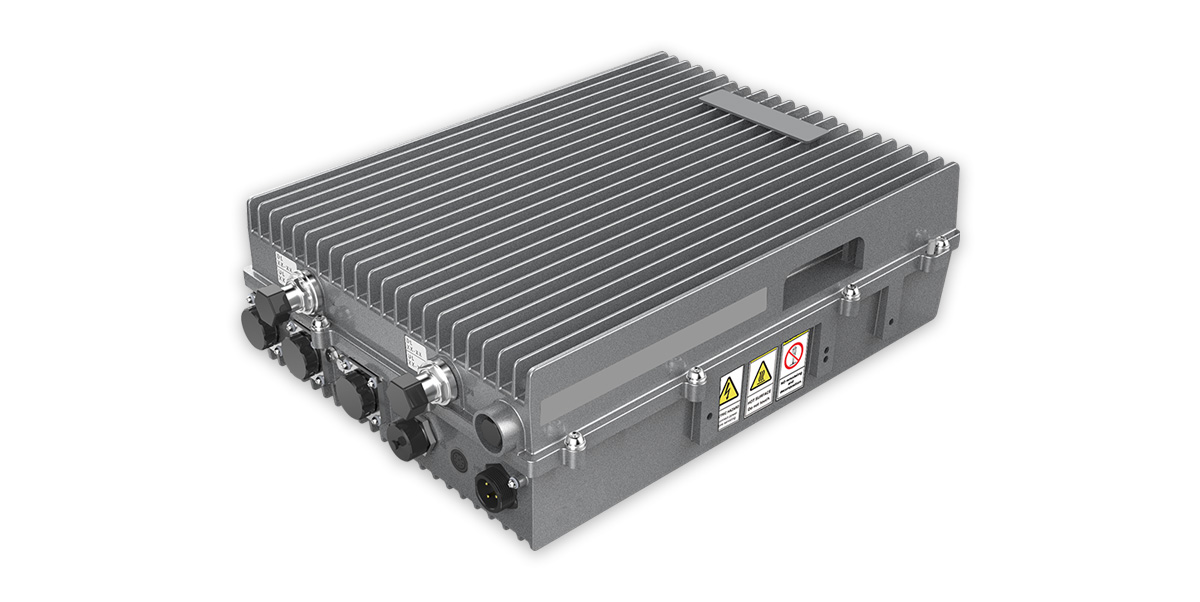

M6200-12

H2RU High Power Remote

The H2RU is a high-power remote unit supporting cellular technologies on fiber optic cable using the CPRI protocol. It is well-suited for multi-operator, multiband deployments in small-to-large building coverage areas. The H2RU supports SISO antenna scheme for low and mid-bands configurations.

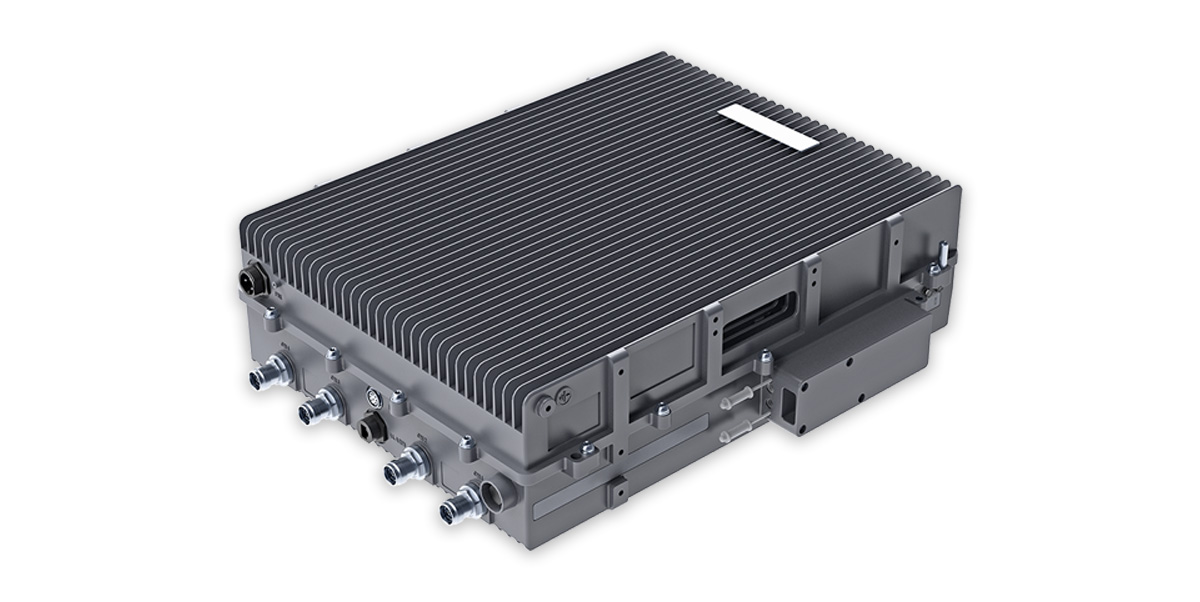

M6200-13

X3RU High Power Remote

The X3RU is a high-power remote unit designed for cellular connectivity over fiber optic cable using the CPRI protocol. It is ideal for multi-operator, multiband deployments across small-to-large building coverage areas. The X3RU supports 2x2 MIMO or 4x4 MIMO antenna schemes for 2.5, 3.5, and 3.7 GHz TDD bands.

Case Study

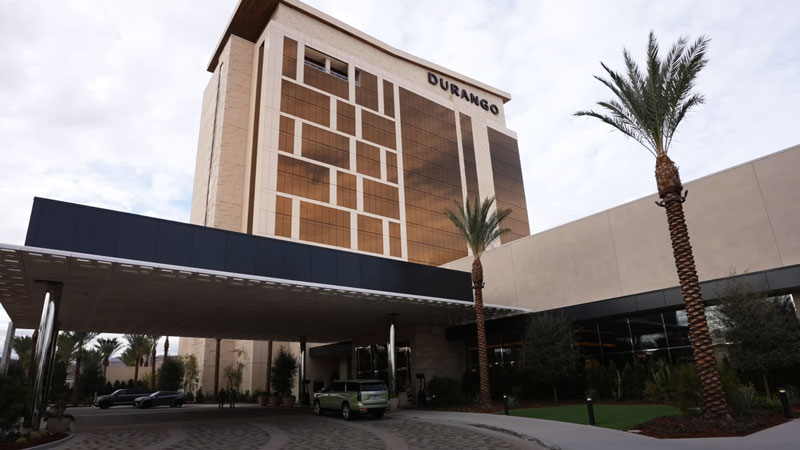

Durango Casino & Resort Utilized Neutral Host Capabilities Using

The Durango Casino & Resort, a property owned by Station Casinos, boasts 83,000 square feet of casino area and 200 high-end rooms. The MobileAccess 3000 DAS by Airspan was implemented as the primary system in other casinos owned by Station. However, for Durango, the MobileAccess 6000 G2 DAS was utilized to create a Neutral Host environment and incorporate the newest technology. This allows for the provision of capacity to the casino, hotel tower, common areas, and parking garage.

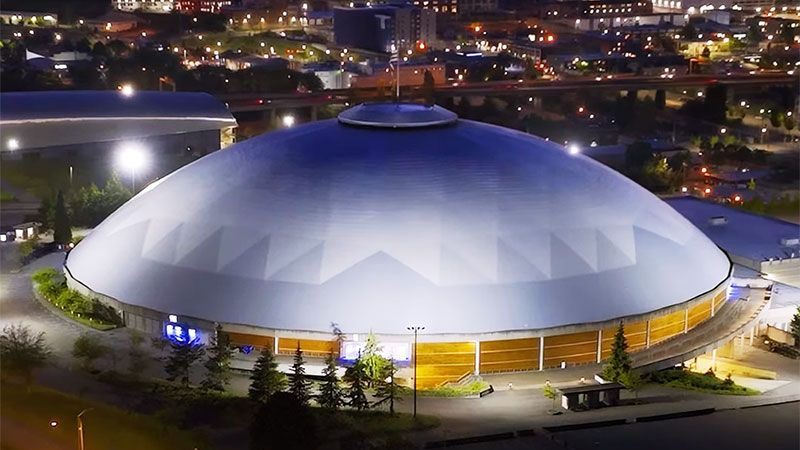

Tacoma Dome Upgraded its Next-generation cellular platform + fiber network = 5G ready

Tacoma Dome, a versatile indoor arena in Tacoma, Washington with a seating capacity of 21,000, is equipped with the MobileAccess 3000 DAS by Airspan. Owned by Boldyn Networks, this system delivers LTE services to the venue. In 2024, an overlay of the MobileAccess 6000 G2 DAS was completed, introducing T-Mobile’s 2.5TDD 5G services. In the future, a C-Band overlay is anticipated for AT&T and Verizon, which will also be implemented using the MobileAccess 6000 G2 DAS.
