Military Communication

Military Communication

Unrivaled protection starts with unparalleled connectivity

When it comes to national defense, connectivity is mission critical. Airspan delivers field-proven wireless military communication for battlefield, border, garrison and infrastructure deployments, ensuring superior army communication and defense secure network capabilities. Our defense broadband solutions are the most broadly deployed COTS+ Microwave applications in recent U.S. military operations. Fully vetted by the national government, all our products have up-to-date requisite security and frequency certifications, and they comply with rugged MiL-SPEC requirements. These solutions are critical for military wireless communication, tactical communication systems, and naval communication systems.

High Performance, Rapid Tactical Deployment

When it comes to global defense and security, connectivity is mission critical. Airspan delivers field-proven wireless military communication for battlefield, border, garrison and infrastructure deployments. Our solutions are designed to support rapid tactical deployment. The PTP 45700 Beam Steering ODU maximizes gain through beamforming and reduces system cost, weight, and complexity, compared to mechanical positioners. Our solutions are the most broadly deployed COTS+ Microwave applications in recent U.S. military operations. Fully vetted by the national government, all our products have up-to-date requisite security and frequency certifications, and are tested to MIL-SPEC requirements. Contact Airspan today for support designing your defense network.

Applications for Wireless Military Communication

  • Voice and video connectivity
  • Video surveillance
  • Leased-line replacement
  • Drop-in communications
  • Telemetry and LMR backhaul
  • Network redundancy
  • Remote office connectivity
  • Disaster recovery

Proven Technology that Combines High Performance and Efficiency

  • High capacity multi-gigabit throughput for clearer video and more locations to a central hub and support growth
  • Support for high capacity devices (cameras)
  • Best in class latency for video and LMR applications
  • Frequency agile to get best use of limited spectrum
  • Spectrally efficient: Allows for reuse of frequency, using half the spectrum of alternative options

Excellence in Wireless Communications

Airspan's global defense and security team bring commercial agility to fulfill the unique requirements of the defense space.

Simple

A nomadic, turnkey and toolless wireless networking kitted solution makes installation fast, and integrated deployment-planning software helps optimize network performance

Scalable

Modular components enable you to ramp from small tactical networks to dense garrison applications

Capable

Wideband radios cover 4400 to 5875 MHz (45700) and 7125 to 8500 MHz (78700), enabling one core radio to perform many missions

Efficient

Centralized management with cnMaestro provides a real-time view of the entire network under a single pane of glass

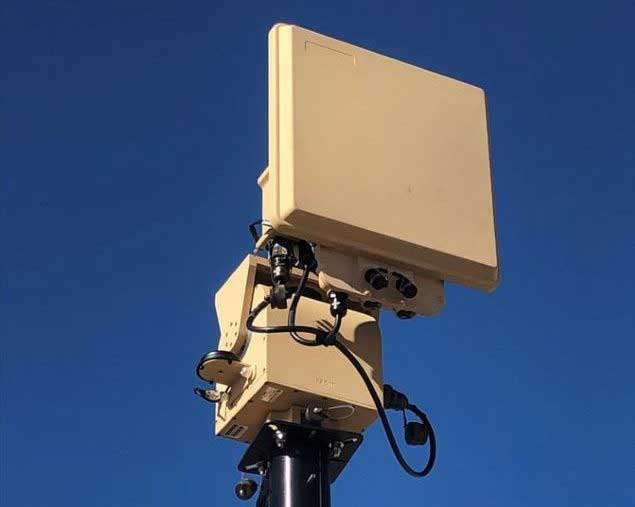

Proven Performance

Field proven wireless communications for military battlefield, border, garrison and infrastructure applications. Airspan brings the flexibility and ruggedness needed in a battlefield-ready radio – and are first to do so in both traditional and non-traditional frequency bands. Our wideband point-to-point and multi-point microwave solutions for strategic and tactical (battlefield) applications include:

  • Over 12 million radios delivered to 150+ countries
  • Currently deployed in support of multiple Federal Agency and Department of Defense Programs of Record (PORs)
  • Anti-jam capabilities with Dynamic Spectrum Optimization (DSO) and full-time spectrum analyzer

Federal Civilian

Airspan offers secure, reliable wireless solutions for video surveillance and two-way radio backhaul, providing seamless connectivity across vast tracts of federal land, including challenging remote environments that experience severe weather. With one robust, rugged wireless network, you can support multiple applications, including voice, data, video surveillance, network redundancy, search and rescue, disaster response and recovery, and more.

  • LMR and two-way radio backhaul
  • Video surveillance backhaul for remote and hard-to-reach sites
  • Connectivity for search and rescue and disaster response
  • Mission-critical redundancy and backup circuits

Public Safety

Airspan delivers secure, reliable wireless backhaul for video surveillance and two-way radio, keeping first responders connected across wide service areas, including remote sites exposed to severe weather. One rugged network supports voice, data, video surveillance, network redundancy, search and rescue, disaster response and more.

  • LMR Backhaul – (LMR Linkplanner)
  • Video Backhaul
  • Leased-line replacement, backup circuits and mission-critical redundancy

National Law Enforcement

Airspan offers secure, reliable wireless solutions for video surveillance and two-way radio backhaul, providing seamless connectivity across mission-critical areas of responsibility for border security and situational awareness. Our technology is optimized for the high-capacity, low-latency demands of next-generation surveillance cameras, radars and sensors. With one robust, rugged wireless network, you can support multiple applications, including voice, data, video surveillance, network redundancy, border patrol, disaster recovery and more.

  • LMR and two-way radio backhaul
  • High-capacity, low-latency backhaul for cameras, radars and sensors
  • Video surveillance backhaul for border security
  • Mission-critical redundancy and backup circuits
Contact the Global Defense Team

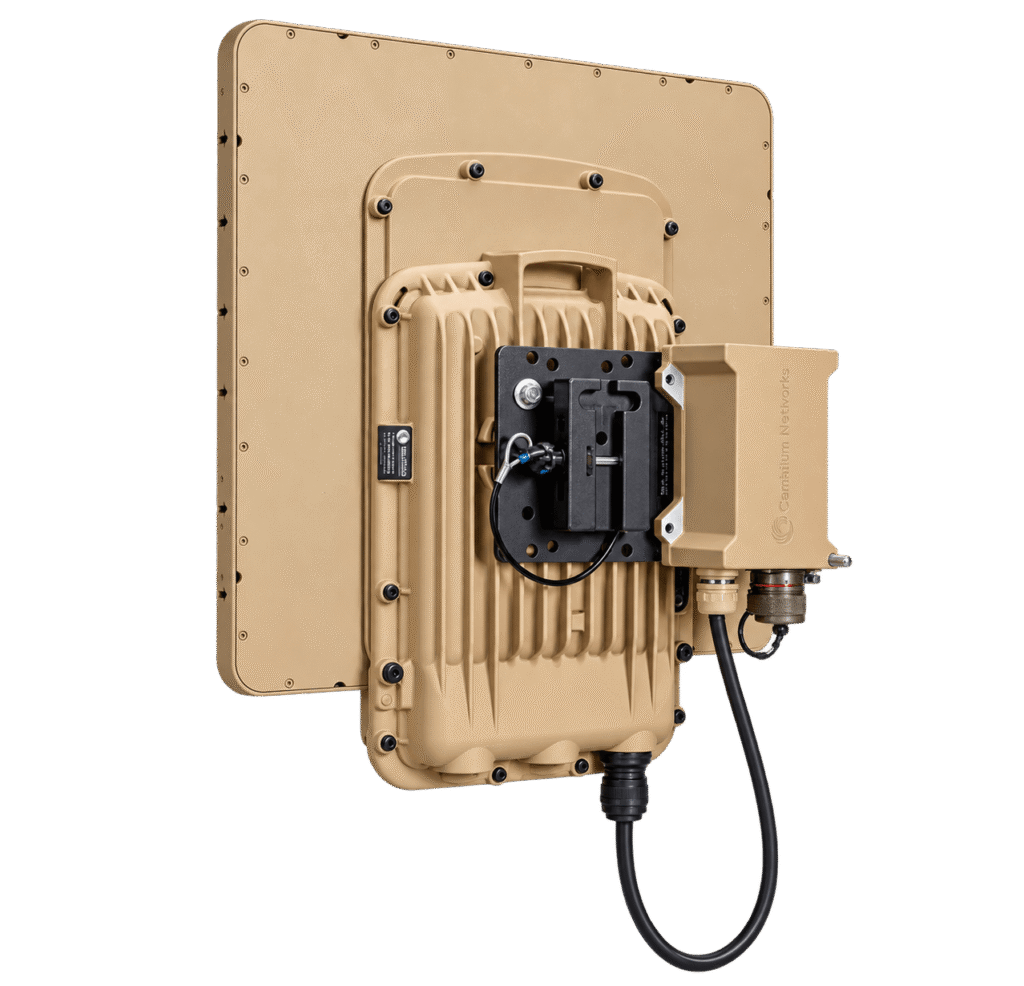

PTP 700: Tactical Communication System

  • The PTP 45700 Beam Steering ODU with integrated Smart Antenna provides electronic beamforming for easy tactical installation and best-in-class interference mitigation
  • PTP 700 is the most broadly deployed, battlefield optimized, COTS+ (commercial off-the-shelf + MIL-SPEC), turnkey tactical radio system2
  • Efficient with low life cycle costs and total cost of ownership.
  • The most highly reliable in the industry, offering agencies maximum value and affordability compared to any other system.
  • Simple to install, operate and maintain. It can be quickly deployed by a two-person team in 30 minutes.

PTP 700 - Wireless Broadband Solution with FIPS 140 & MIL-SPEC Standards

One radio — many missions

PTP 700 is a Point-to-Point wireless broadband solution for mission-critical communications in government, industrial, and public safety spaces. With FIPS 140 security and NTIA spectrum certifications, PTP 700 provides models with integrated antennas and/or connectorized for external antennas – allowing for flexible antenna selection at time of deployment.

The PTP 700 Beam Steering ODU with integrated Smart Antenna provides electronic beamforming that allows for easy tactical installation and best-in-class interference mitigation in addition to the industry-leading spectral efficiency and processing capabilities of the PTP 700 family of products.

PTP 700 supports two different frequency bands. The PTP 45700 covers 4.4 GHz to 5.925 GHz and the PTP 78700 covers 7.125 GHz to 8.5 GHz.

PTP 700 for Mission-Critical PTP Communications Features FIPS 140-2 and NTIA Certification with 4.4 GHz to 5.9 GHz and 7.125 GHz to 8.5 GHz PTP Frequency

Frequency

4.4 GHz to 5.9 GHz and
7.125 GHz to 8.5 GHz

Flexible Channel Width

5, 10, 15, 20, 30, 40, and
45 MHz channels

Industry Standards

FIPS 140-2, MIL-STD-810G, IPv6,
1588v2 / SyncE (LTE-ready)

Throughput

Up to 450 Mbps

Latency

1 - 3 msec

Reliability

Dynamic Spectrum Optimization

Overcoming obstacles

Whether deploying in first-responder tactical situations, over water to oil platforms, in urban canyons to video cameras and hot-spots, or along remote stretches of national borders for defense and situational awareness, the requirements for high-speed connectivity intersect with constraints on available spectrum, line of sight and non-line of sight topologies, IT/Enterprise integration, cyber-security threat prevention, and harsh environmental conditions.

Dynamic Spectrum Optimization™(DSO)

The challenging nature and complexity of these missions requires flexibility from systems that allow spectrum managers, network operators and implementation managers to negotiate changing program landscapes while staying within budgetary parameters. Dynamic Spectrum Optimization™ (DSO) is a unique capability offered by Airspan that enables optimization of link performance by automatically sampling and changing channels to avoid interference without affecting link service. See the DSO White Paper for full details.

Specifications

RADIO TECHNOLOGY
RF BANDS

Wide-band operation 4.400 to 5.925 GHz in single SKU Supported bands include the following: - NATO Band IV / NTIA Compliant (4.40 GHz to 4.99 GHz) - 4.9 GHz Public - 5.1/5.2/5.4/5.8 GHz FCC, 5GHz ETSI

Wide-band operation 7.125 to 8.5 GHz in single SKU Supported band: NTIA and ETSI 7/8 GHz band
CHANNEL SIZES 5, 10, 15, 20, 30, 40, and 45 MHz channels
SPECTRAL EFFICIENCY 11.2 bps/Hz maximum for 7125 to 8.500 GHz 10 bps/Hz maximum for 4.400 to 5.925 GHz
CHANNEL SELECTION By Dynamic Spectrum Optimization™ (DSO) or manual intervention; automatic selection on start-up and continual self-optimization to avoid interference
MAXIMUM TRANSMIT POWER 29 dBm 4.400 to 5.925 GHz and 30 dBm 7.125 to 8.5 GHz
SYSTEM GAIN Integrated: Up to 161 dB with 20 MHz channel and integrated 21 dBi antenna for PTP 45700 and up to 168 dB with 20 MHz channel and integrated 26 dBi antenna for PTP 78700; varies with modulation mode, channel size and spectrum Connectorized: Varies with modulation mode and antenna type Use Airspan LINKPlanner to determine expected capacity and availability for a given deployment.
RECEIVER SENSITIVITY -97 dBm with 5 MHz channel
MODULATION / ERROR CORRECTION Fast Preemptive Adaptive Modulation featuring 13 modulation / FEC coding levels ranging from BPSK to 256 QAM dual payload MIMO
ANTENNA Connectorized+Integrated: 21 dBi flat panel or external antenna via 2 x N-type connectors Connectorized: Can operate with a variety of single- and dual-polarity antennas through 2 x N-type female connectors
RANGE Up to 155 miles (250 km)
SECURITY 128/256-bit AES Encryption (optional) HTTPS and SNMPv3 Identity-based user accounts Configurable password rules User authentication and RADIUS support Event logging and management; optional logging via syslog Disaster recovery and vulnerability management FIPS-197 compliant FIPS 140-2 Level 2 (compliant at launch); NIST Validation late-2015
PROTOCOL IEEE 802.3
USER DATA THROUGHPUT Dynamically variable up to 500 Mbps Maximum in 7.125 to 8.500 GHz and up to 450 Mbps Maximum in 4.400 to 5.925 GHz conditions : 2x2, 45 MHz channel1 , 256 QAM
LATENCY 1 – 3 ms one-direction latency
QoS 8 Queues
PACKET CLASSIFICATION Layer 2 and Layer 3 IEEE 802.1p, MPLS, Ethernet priority
PACKET PERFORMANCE Line rate (>850K packets per second)
TIMING TRANSPORT Synchronous Ethernet; IEEE 1588v2 (optional)
LED INDICATORS Power status, Ethernet link status, and activity on Extended Range PoE supply
NETWORK MANAGEMENT In-band and out-of-band management (OOBM)
SYSTEM MANAGEMENT IPv6/IPv4 dual-stack management support Web access via browser using HTTP or HTTPS/TLS2 SNMP v1, v2c and v3, MIB-II and proprietary PTP MIB Airspan Wireless Manager, WM 4.0/SP4 or higher (optional) In-band On-line spectrum analyzer (no impact on payload traffic or network operation)
INSTALLATION Built-in audio and graphical assistance for link optimization
CONNECTION Distance between outdoor unit and primary network connection: up to 330 feet (100 meters) using Power-over-Gigabit Ethernet; longer distances up to 984 feet (300 meters) can be achieved using fiber interface
DIMENSIONS Connectorized+Integrated Outdoor Unit (ODU): Width 371 mm (14.6”), Height 429 mm (16.9”), 96 mm (3.8”) Connectorized ODU: Width 204 mm (8.0”), Height 318 mm (12.5”), Depth 90 mm (3.5”)
WEIGHT Connectorized+Integrated ODU: 5.3 kg (11.7 lbs.) including bracket Connectorized ODU: 3.1 kg (6.8 lbs.) including bracket
OPERATING TEMPERATURE -40° to +140° F (-40° to +60° C), including solar radiation
SHOCK, VIBRATION, TEMPERATURE, HUMIDITY MIL-STD-810G FOR 4.400 TO 5.825 GHz and MIL-STD-810H FOR 7.125 TO 8.500 GHz
DUST-WATER INTRUSION PROTECTION IP66 and IP67
REGULATORY PROTECTION AND SAFETY UL60950-1 and -22; IEC60950-1 and -22; EN60950-1 and -22; CSA-C22.2 No. 60950-1; CSA-C22 No. 60950-22-7; CB approval for Global
RADIO

4.9 GHz: FCC Part 90Y, RSS-111 5.x GHz: FCC Part 15, sub-parts 15C and 15E; RSS 247 Issue 1; EN 302 502; EN 301 893; EN 302 625; Eire ComReg 02/71R1, UK Approval to IR2007

7.125 to 8.500 GHz: NTIA, ETSI
EMC Europe – EN 301 489-1 and -17; FCC Part 15B Class B
